175PSI 10HP Cylinder Air Compressor Pump Head Low Energy Consumption Air Compressor Pump Motor Air Tool Universal Low Noise
Product details
| Management number | 218674329 | Release Date | 2026/05/03 | List Price | US$88.80 | Model Number | 218674329 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

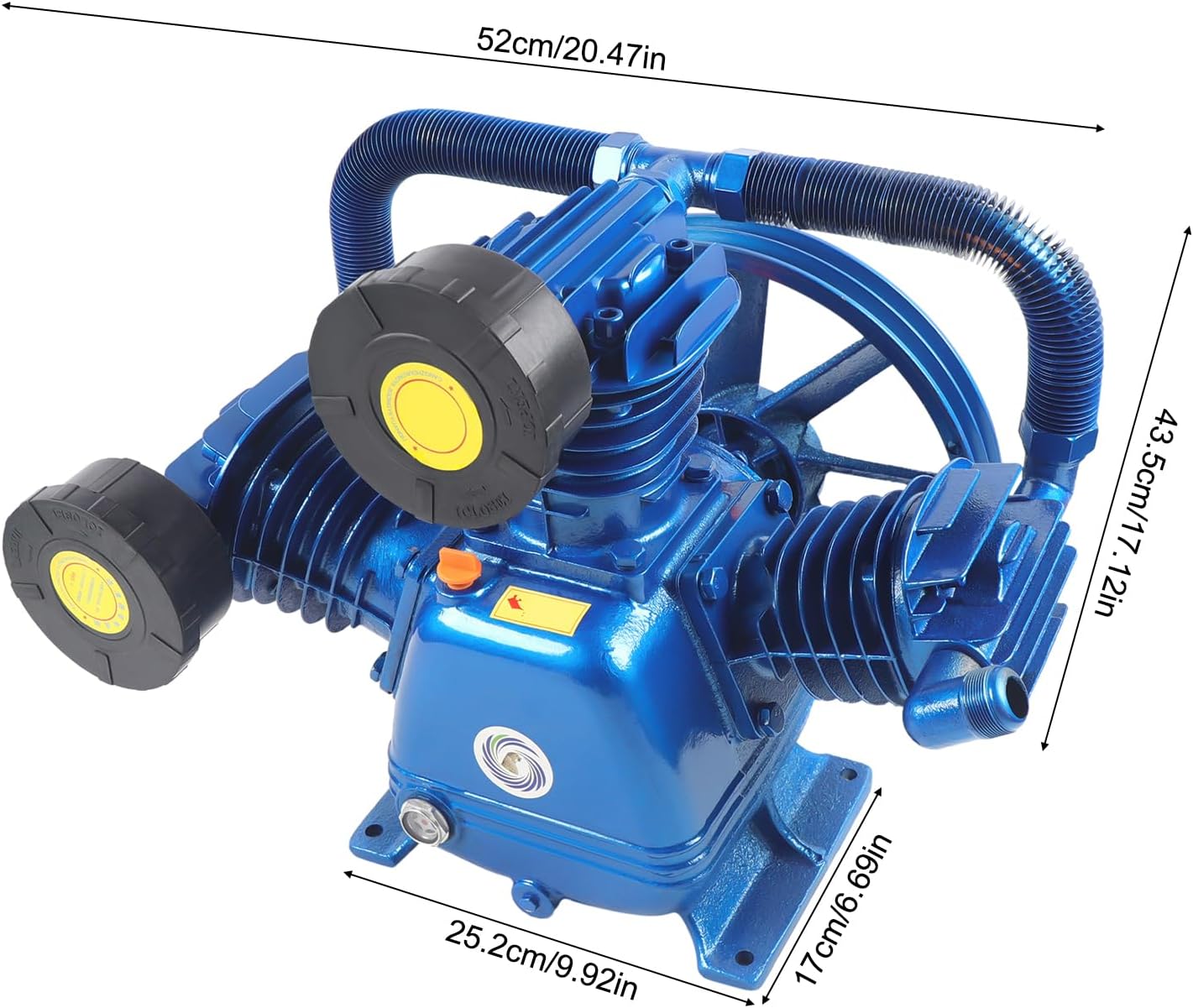

Specifications:Model: W-0.9/12.5Power: 7.5KWMain wheel: 350mm (13.8in)Pipe interface: M33x1.5 mm (M1.3x0.06 in)Cylinder diameter: 90x2 + 65x1mm (3.5x2 + 2.5x1 in)Compression level: secondary compressionMaximum pressure: 175psi 10HPInstallation hole distance: 252x170mm (10x6.7in)Material: Cast IronPackage size: 56x36x45cm (22x14x17.7in)Net weight: 33kg (73lb)Material: Cast IronDriving mode: PneumaticAttention:First, it should match the motor powerSecond, the head and motor pulley must be kept in a straight line to avoid bearing displacementThird, before using a new machine, you must add oil first. Change the oil for half a month for the first time, one and a half months for the second time, and change the oil for the next four to five months. Pay attention to observation at ordinary times. If it is not enough, replenish it in time. Keep the oil level in the middle of the red spot of the oil mirrorFourth, the pump head will produce high temperature in the process of operation, do not touchPacking list:1 x Air compressor pump headOur warehouses are located in NJ and CA, the products can be delivered in a short time. If you have any questions or suggestions, please feel free to contact us, we will response ASAP.
- 【Product Parameters】Power: 7.5K; Maximum pressure: 175psi 10HP; Pipe interface: M33x1.5 mm (M1.3x0.06 in); Cylinder diameter: 90x2 + 65x1mm (3.5x2 + 2.5x1 in).
- 【Premium Material】The pump head of this air compressor is made of aluminum cylinder head, which can supply air faster, dissipate heat quickly, not easy to damage, compact structure and lower noise.
- 【Suction and Exhaust】Suction and exhaust valve design: the hair piece is made of special valve steel with excellent strength and toughness at high temperature.
- 【Host Belt Design】strict balance support correction, to ensure the host running balance, strong cooling blade, better heat dissipation.
- 【High Efficiency】It has the characteristics of high efficiency, high precision, low energy consumption and strong versatility.
| UPC | 755205198723 |
|---|---|
| Color | Blue |
| Style | Rotary Screw, Portable, Medium Tank Capacity, Electric |
| Brand Name | Kaibrite |
| Model Name | W 1 5/12 5 |
| Unit Count | 1.0 Count |
| Manufacturer | BEVOGIE |
| Model Number | W1_5_12_5 |
| Power Source | pneumatic-powered |
| Material Type | Cast Iron |
| Maximum Power | 10 Horsepower |
| Maximum Pressure | 175 Pound per Square Inch |
| Maximum Horsepower | 10 Horsepower |
| Additional Features | Silent Operation |
| Included Components | Air Compressor Pump Head |
| Item Dimensions L x W x H | 22.05"L x 14.17"W x 17.72"H |
| Recommended Uses For Product | Drilling, Bolting, Nailing, Sanding |
